TAK's one of main products is E1 over fiber PDH E1 multiplexer series,there are various model for different function,this article will summarize our company's E1 over fiber PDH E1 multiplexer:

Single type E1 multiplexer:

4E1 PDH Multiplexer

8E1 PDH Multiplexer

16E1 PDH Multiplexer

4E1+4FE 1+1 fiber redundancy PDH Multiplexer

 8E1+4FE 1+1 fiber redundancy PDH Multiplexer

16E1+4FE 1+1 fiber redundancy PDH Multiplexer

16E1+3FE+1FX 1+1 fiber redundancy PDH Multiplexer

16E1+4FE 1+1 fiber redundancy PDH Multiplexer(Physical isolation)

4E1+Ethernet PDH Multiplexer

4E1+4×Ethernet PDH Multiplexer

 8E1+4×Ethernet PDH Multiplexer

16E1+4×Ethernet PDH Multiplexer

16E1+Gigabit Ethernet PDH Multiplexer

 16E1+4×Gigabit Ethernet PDH Multiplexer

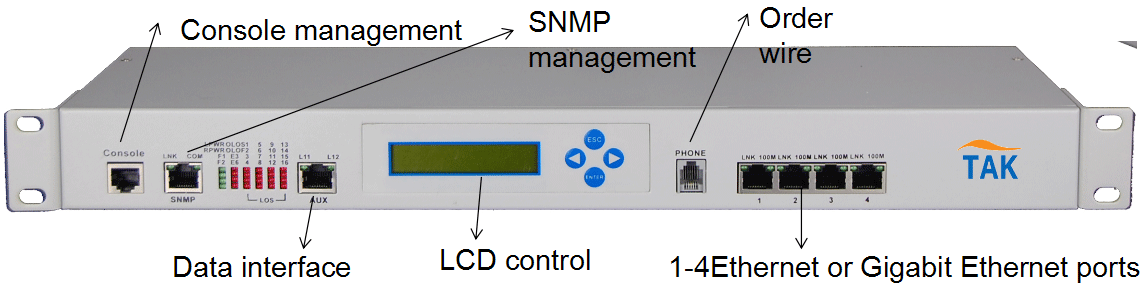

16E1+LCD+SNMP PDH Mux

LCD + 4×Ethernet+ 4 multifunction slots+Console or SNMP, 1+1 fiber redundancy PDH Mux

Additional function:

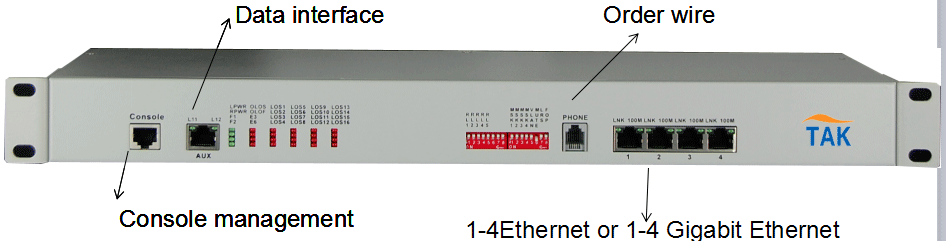

•  SNMP,console management
• LCD display
•  Extended service interface can be used as E1 signal, RS232/ (asynchronous RS485/RS422 data, FXO/FXS or EM2/4 line,V.35
• Order wire function
• AC220V,DC48V dual power supply
• Transmitting distance up to 120 KM
• desktop or card type in chassis optional

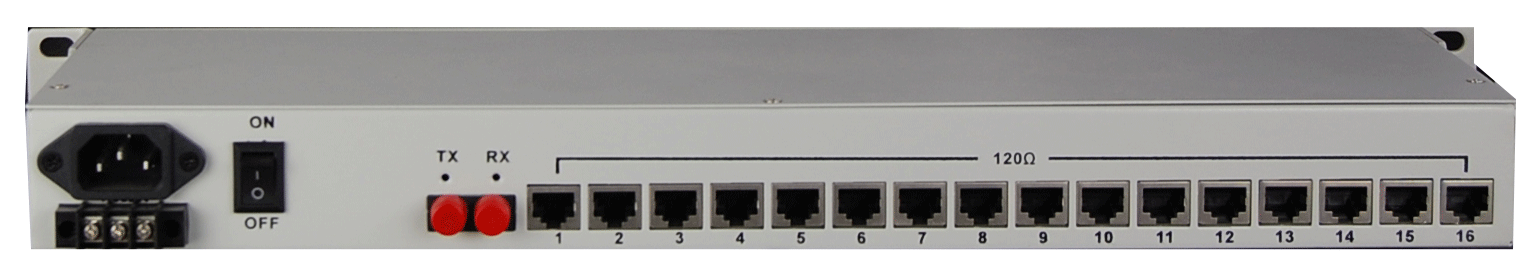

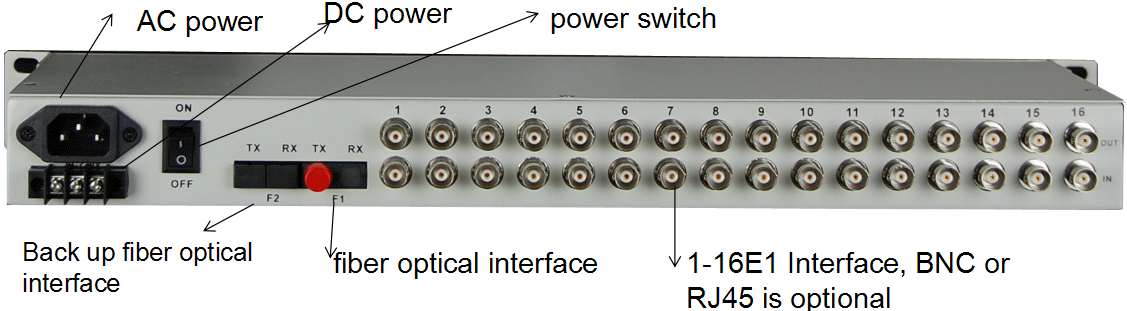

16E1 Multiplexer Series:

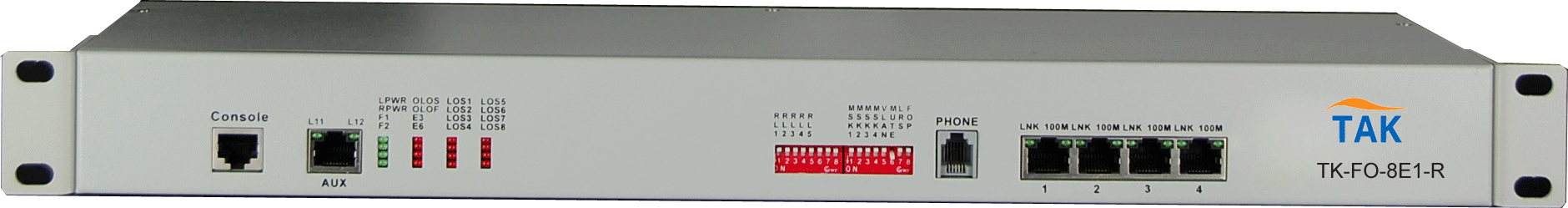

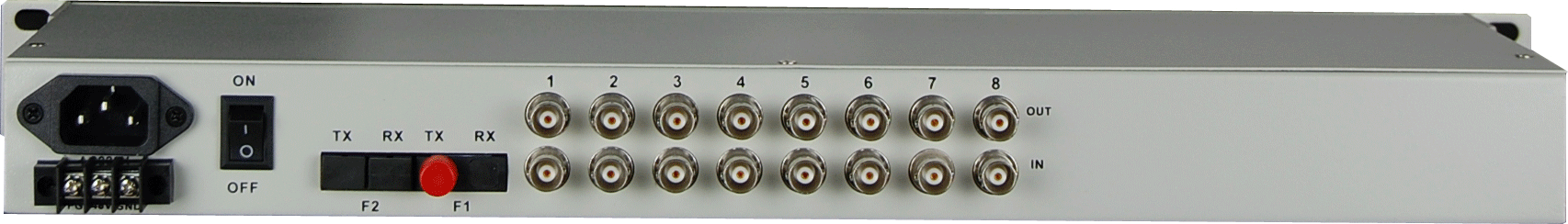

8E1 PDH multiplexer Series:

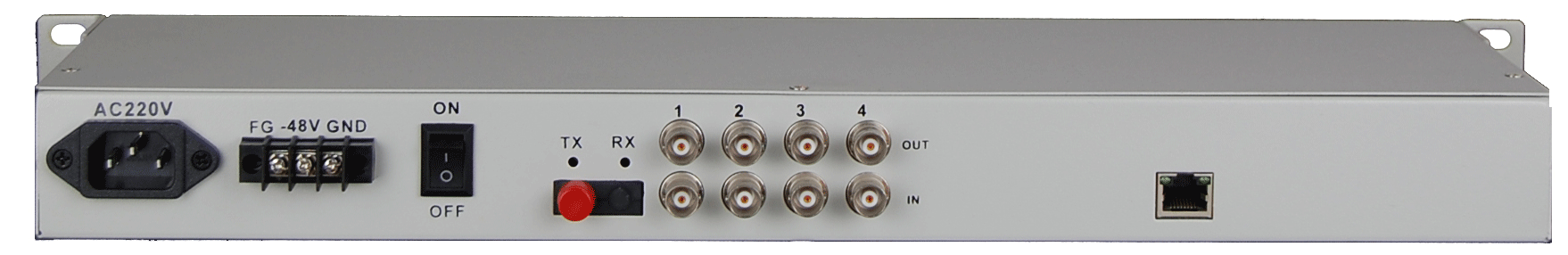

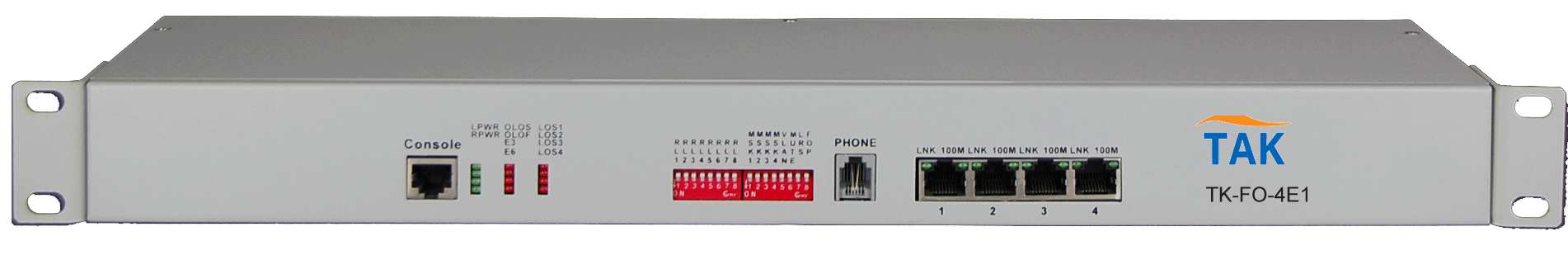

4E1 PDH Mux series:
