SNMP 4E1+4ETH+16×FXS/FXO PCM Optical Multiplexer is launched

One of TAK Communication’s product is launched . The model number is TK-PCM-FO-16-4E1-4FE-4RS232, it provides:


  • 16 Channel voice(FXS,FXO,POTS)
  • 1-4 Channel E1 interface
  • 4 Channel 10M/100M Ethernet interface (Line Speed 100M)
  • 4 expansion interface
  • can be made as can card type inserted into 6U chassis for large transmission,support SNMP
  • Support Console
  • AC 220V, DC-48V, DC24V can be optional
  • Transmission distance is up to 2-120Km without interruption


4 Channel Ethernet interface is switch interface, can support VLAN. 4 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). So this SNMP managed 4×E1+4×100M Ethernet+4×RS232+16×FXS/FXO PCM Voice Optical Multiplexer is very flexible equipment. For more info,please view: https://www.takfiberoptic.com/4e14eth4rs232-fiber-optical-multiplexer-p-20.html

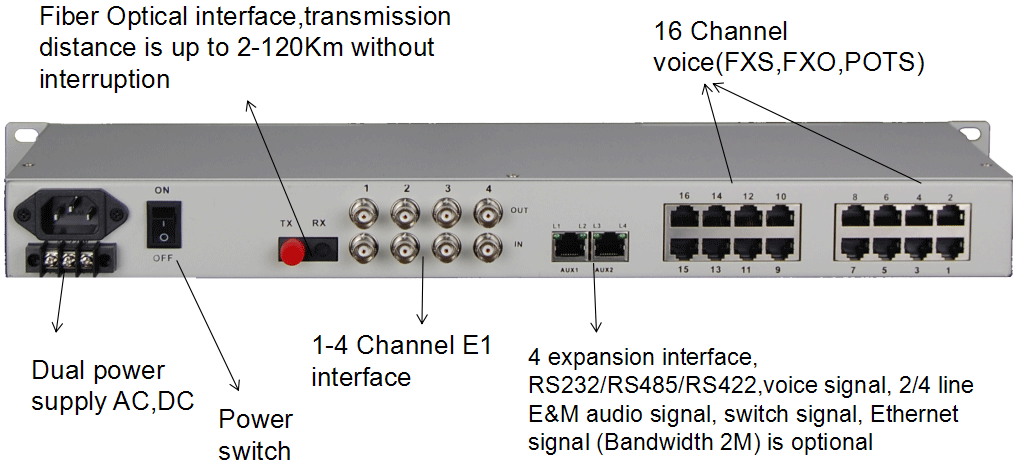

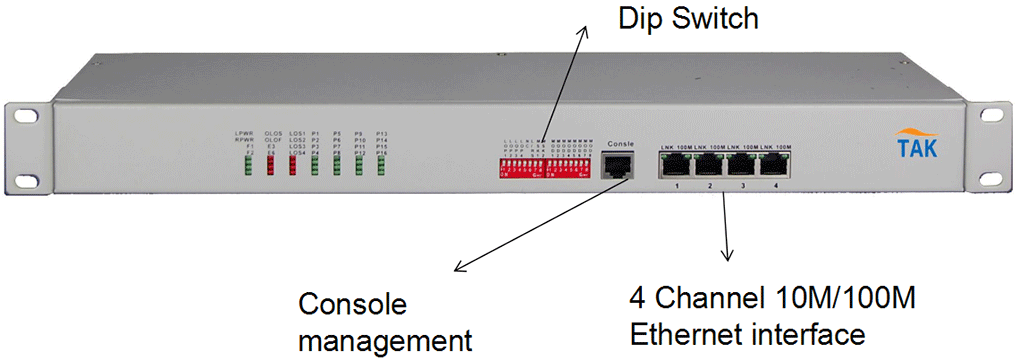

 Following is the picture of the device:
