Solution description:

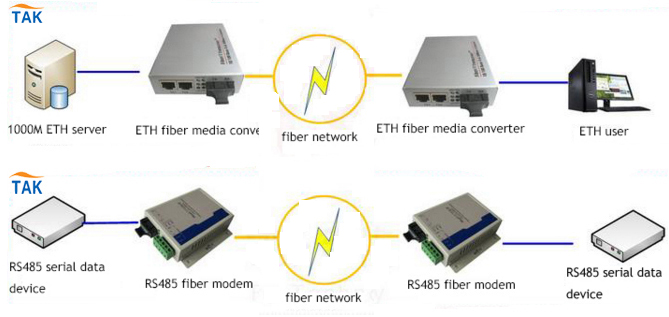

 Optical transceiver (Ethernet multiplexer ) and RS485 optical modem are widely used in all kinds of industrial occasions, the former is a computer connected to the Internet, the latter one is applied in industrial control, one card, instruments and meters, etc., in many projects, the demand of two devices is exist at the same time, if you want to transmit this two kinds of business at the same time, generally need to use two pairs devices and at least two optical fibers:

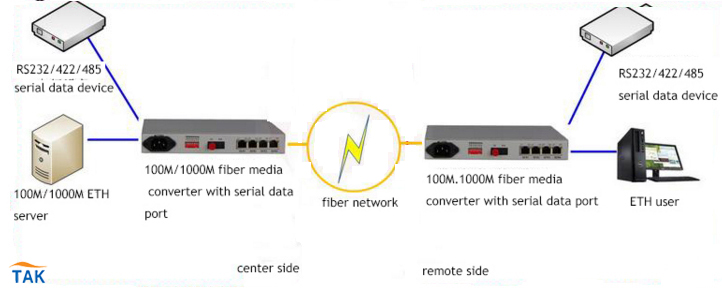

We timely launch a optical fiber transmission equipment, can have both 2 Shared 10/100/1000M Ethernet ports and 4 RS232/422/485 interface, and only through a core optical fiber transmission, then it save fiber resources, also can save fiber optic equipment, reduce the fault point, convenient for maintenance of the equipment. Widely used in the application of HD network video monitoring and other occasions which need other two kinds of data interface.

the following two products platform can be choose by users :

1. Desktop 4* RS232/422/485 + 2 *100M Ethernet optical transceiver

2. Desktop 4*RS232/422/485 + 2 *1000M Ethernet optical transceiver The Ethernet ports of above products is line speed 100M or 1000M bandwidth, and can do port isolation or 802.1 Q VLAN division according to the customer’s requirement
