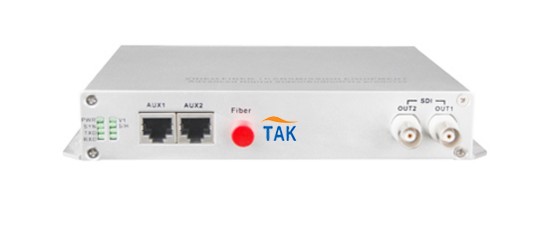

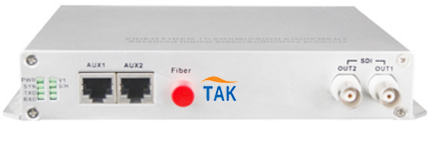

3G HD-SDI video optical transceiver
This equipment provides 1 channel HD-SDI or 3G SDI in the fiber optical transmission , with batch function to the data
- Product description
- Functions
- Technical parameters

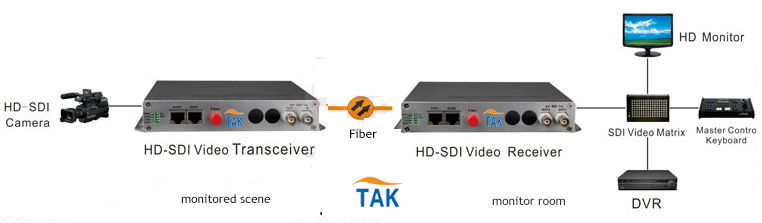

- Application
TK-FO-V-01-3G-SDI uses digital coding technology, all the way 3Gbps HD -SDI video signals and data signals long distances all the way back through a single-mode fiber bidirectional transmission, the maximum signal without distortion unrepeated transmission 80Km. 3Gbps HD -SDI Optical high-definition digital TV signal format from 270Mbps to 2.97Gbps, 3Gbps HD-SDI video optical system supports SMPTE 424M, signal SMPTE 292, SMPTE 344M, SMPTE 259M and DVB-ASI (270M) and other digital television formats.
