One of TAK communication’s main E1 to Ethernet converter products GFP& SNMP managed 16E1 to 4*Fast Ethernet FE interface converter is launched now. This equipment provides 16E1 to 4xFast Ethernet FE convert , Ethernet can be divided into logical isolation , Encapsulated with GFP package, support LCAS and LAPS protocol,support independent SNMP network management, the main function of network management system is to fulfill the inquiry for local and remote devices and configuration management including inquiry of alarm status on E1 line, Ethernet working status, and loopback control etc.

This GFP& SNMP managed 16E1 to 4*Fast Ethernet FE interface converter can support 1-16 Channel E1 channel configuration, can automatically detect the number of E1 and select the E1 available. It allows E1 lines transmission time, 1channel/4channel/8channel/16channel Ethernet bandwidth is 1984Kbit/s,7936Kbit/s,15872 Kbit/s,31744Kbit/s.

The device provides alarm function. work is reliable, stable, and low power consumption, high integration, small size,support 19inch 1U, dual powers supply AC220V and DC-48V.

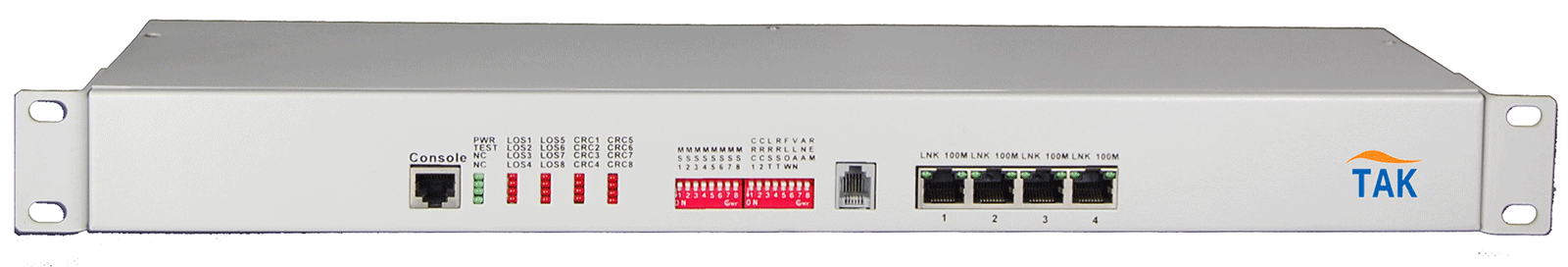

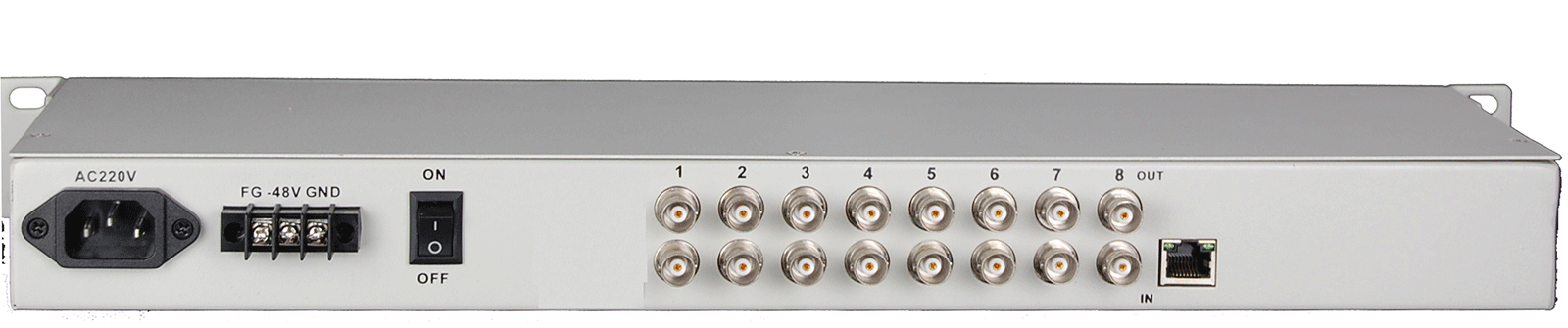

Following pictures are E1 converter for reference:
